Product specifications

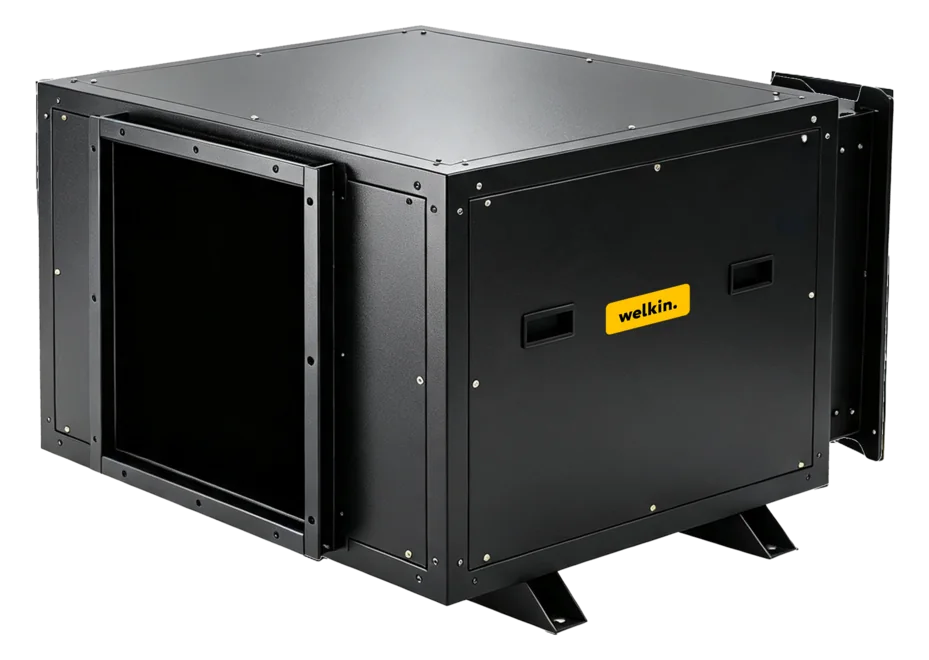

SAV-168L
Central Dehumidifier
| Model | SAV-168L |
|---|---|
| QCC Registration | Registered |
| Region | UAE |
Characteristics
| Power supply (V/Hz) | 220/50 |
|---|---|
| Machine dimensions (L × W × H, mm) | 1080 × 840 × 695 |
| Supply air volume (m³/h) | 1500 |
| External residual pressure (Pa) | 120 |
| Supply air outlet (W × H, mm) | 590 × 290 |
| Return air outlet (W × H, mm) | 650 × 550 |
| Applicable area (m²), floor height 2.6 m | 200–250 |
| Input power (kW) | 2.8 |
| Compressor | International brand compressor |
| Operating temperature (°C) | 5–38 |
|---|---|
| Evaporator type | High-efficiency copper tube |
| Fan type | Three-speed adjustable fan |
| Filter type | Primary filter |
| Drainage pipe diameter (DN) | 15 |
| Drainage method | Built-in drainage pump |
| Weight (kg) | 88 |
| Noise (dB(A)) | 60 |
Dehumidification capacity
| 30 °C / RH 80% (L/D) | 168 |
|---|---|
| 27 °C / RH 60% (kg/h) | 3.5 |
Refrigerant circuit
| Refrigerant | R410a |
|---|---|
| Throttle method | Capillary tube |
Product features
High strength
and durability
Sheet metal frame structure with anti-corrosion treatment.
Efficient
operation
Pure copper core motor ensures reliable and efficient performance.
Powerful
compressors
Internationally renowned brand compressors provide stable operation and high energy efficiency.
Enhanced
dehumidification efficiency
Extra-thick hydrophilic aluminum foil and internal threaded copper pipes promote rapid condensation.
Intelligent control
Automatic humidity adjustment, energy-saving operation, and automatic fault diagnosis for a worry-free user experience.
Smart Wi-Fi control
Remote management and monitoring via a wireless connection and a dedicated smartphone app.
Certified compliance
Officially verified with a Certificate of Conformity issued by the relevant UAE Ministry.
