Product specifications
WINVDUCT-30
Split inverter ducted air conditioner
| Model | WINVDUCT-30 |
|---|---|
| Series | Split Inverter Ducted |
| Indoor unit model | ALTMD-H36/NDR1EB-1 |
| Outdoor unit model | ALT-H36/NDR1B(U)-1 |
| Capacity (ton) | 3 |
| QCC Registration | Registered |
| Region | UAE |

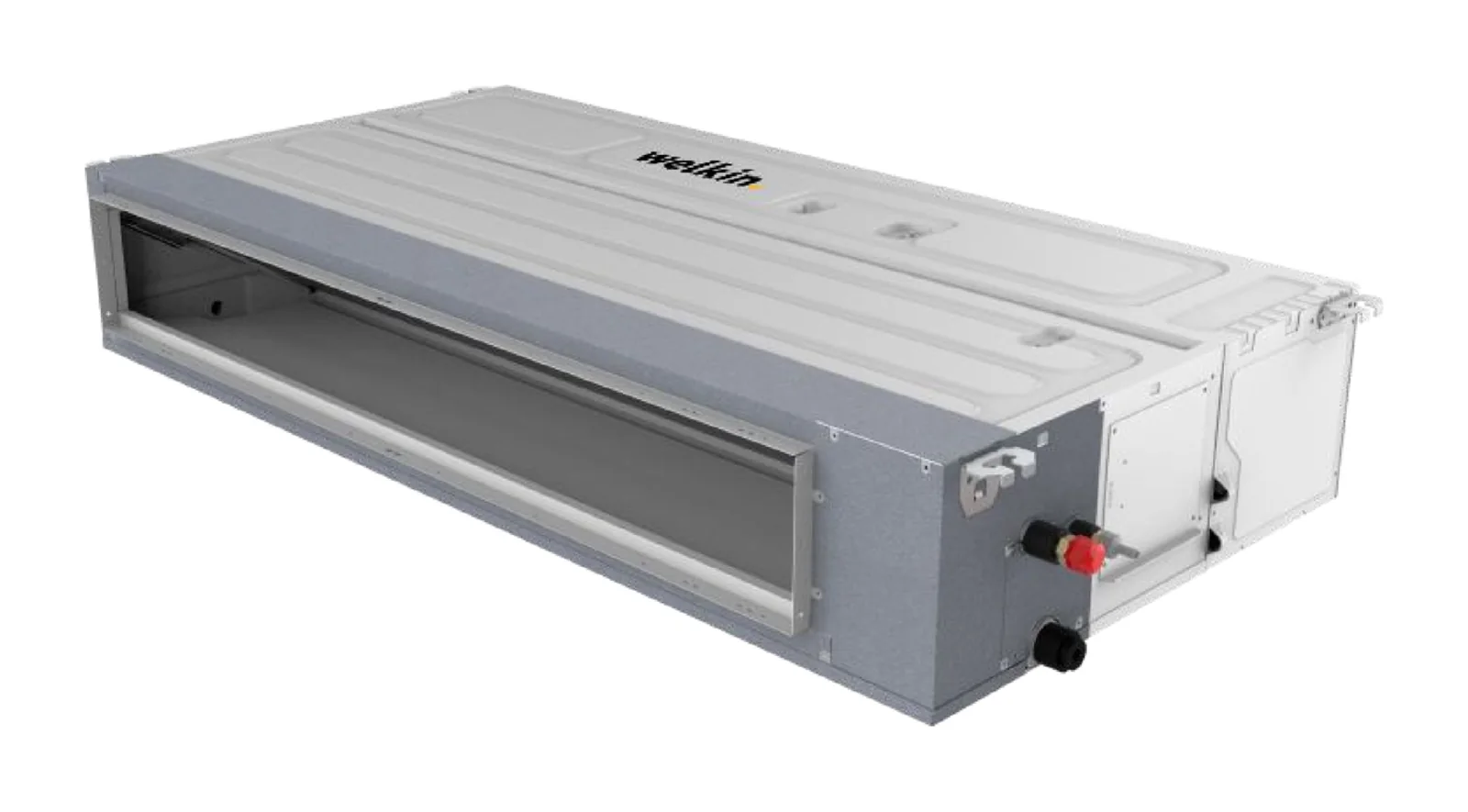

Indoor unit
| Power supply (V / Hz / phase) | 220–240 / 50–60 / 1 |
|---|---|
| Power factor, T3 | 0.9 |
| Cooling capacity, T3 (Btu/h) | 30000 |
| Cooling capacity, T3 (kW) | 8.80 |
| Rated cooling power input, T3 (W) | 3488 |
| Rated cooling current, T3 (A) | 16.49 |
| EER, T3 (W/W) | 2.52 |
| EER, T3 (Btu/Wh) | 8.60 |
| SEER, T3 (W/W) | 4.54 |
| SEER, T3 (Btu/Wh) | 15.49 |
| Air flow, Hi / Mi / Lo (m³/h) | 2100 / 1900 / 1600 |
| Air flow, Hi / Mi / Lo (CFM) | 1235 / 1117 / 1000 |
| Noise level, Hi / Mi / Lo (dB(A)) | 45 / 42 / 40 |
| External static pressure, standard (Pa) | 37 |
|---|---|
| External static pressure, range (Pa) | 0–160 |
| Net dimensions (W × D × H, mm) | 1250 × 735 × 320 |
| Packing dimensions (W × D × H, mm) | 1430 × 800 × 390 |
| Net weight (kg) | 48 |
| Gross weight (kg) | 54 |
| Structure platform | E5 |
| Refrigerant pipe, liquid side, Ø (mm) | 9.52 |
| Refrigerant pipe, gas side, Ø (mm) | 15.88 |
| Drainage | DN25 |
| Operating temperature (°C) | 16–32 |
| Wired controller | XK05 |
Outdoor unit
| Power supply (V / Hz / phase) | 220–240 / 50–60 / 1 |
|---|---|
| Max. input consumption (W) | 4900 |
| Air flow (m³/h) | 4200 |
| Compressor model | KTM240D43UKP |
| Compressor type | Rotary |
| Compressor brand | GMCC |
| Compressor capacity (W) | 7640 |
| Compressor input (W) | 2065 |
| Compressor rated current (A) | 9.3 |
| Thermal protection temperature (°C) | 115 |
| Noise level (dB(A)) | 59 |
| Net dimensions (W × D × H, mm) | 970 × 395 × 805 |
|---|---|
| Packing dimensions (W × D × H, mm) | 1105 × 495 × 895 |
| Net weight (kg) | 61 |
| Gross weight (kg) | 66 |
| Structure platform | NEW 3P |
| Refrigerant | R410A |
| Refrigerant charge (g) | 2850 |
| Refrigerant pipe, liquid side, Ø (mm) | 9.52 |
| Refrigerant pipe, gas side, Ø (mm) | 15.88 |
| Max. pipe length (m) | 50 |
| Max. height difference (m) | 30 |
Product features
DC inverter
The compressor modulates to the load instead of cycling on and off — steadier temperature, lower running cost.
Built-in drain pump
Condensate is lifted to the drain line by the unit itself, which frees the ceiling void from a gravity fall.
Fresh air intake
An optional intake lets the unit draw in and condition outside air alongside the return.
Thermostat
Wired controller with a room sensor, for precise setpoint control from the wall.
IR remote
Infrared remote control for everyday use from anywhere in the room.
Wi-Fi
Remote management and monitoring over a wireless connection and a smartphone app.
