Product specifications

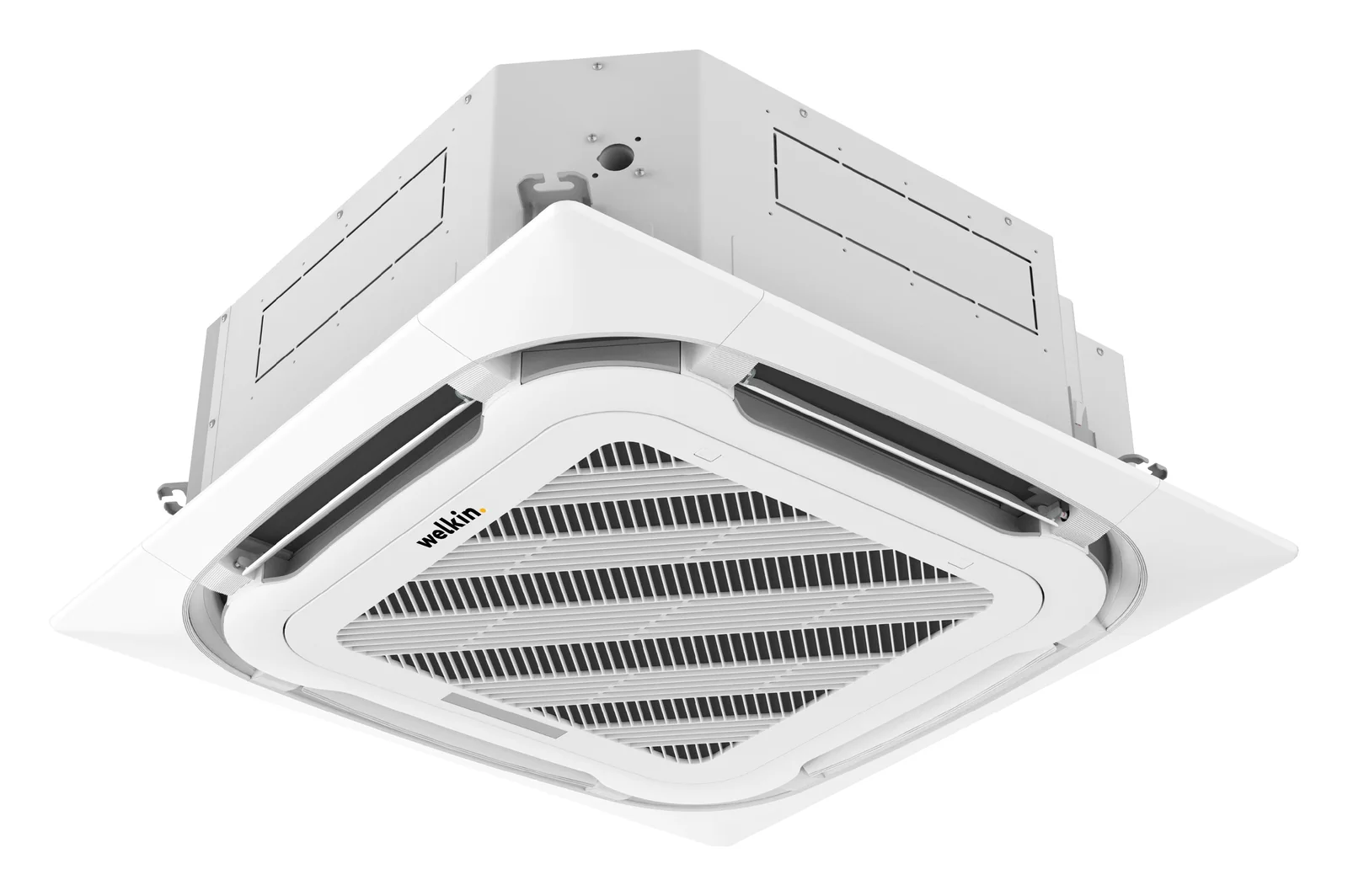

WSGV-1000-VS-4NS
Chilled-water fan coil — Cassette 4-way unit
| Model | WSGV-1000-VS-4NS |
|---|---|
| Series | Cassette 4-way unit |
| Air flow (CFM) | 1000 |
| Capacity (ton) | 2.5 |
| Capacity (kW) | 9 |
| QCC Registration | Registered |
| Region | UAE |
Fan coil unit
| Power supply (V / Hz / phase) | 220–240 / 50 / 1 |
|---|---|
| Cooling capacity, H / M / L (W) | 9018 / 7665 / 5862 |
| Heating capacity, H / M / L (W) | 13512 / 11485 / 8783 |
| Air flow volume, H / M / L (m³/h) | 1700 / 1275 / 850 |
| Air flow volume, H / M / L (CFM) | 1000 / 750 / 500 |
| Water flow (m³/h) | 1.68 |
| Hydraulic resistance (kPa) | 36 |
| Max. working pressure (MPa) | 1.6 |
| Noise level (dB(A)) | 48 |
|---|---|
| Net dimensions (W × D × H, mm) | 835 × 835 × 290 |
| Packing dimensions (W × D × H, mm) | 910 × 910 × 310 |
| Net weight (kg) | 26.5 |
| Gross weight (kg) | 31 |
| Drain pipe | DN20 |
| Inlet / outlet water pipe | DN20 |
| Power wiring, indoor (mm²) | 3 × 1 |
Fan motor and coil
| Fan motor type | Low-noise 3-speed fan motor (W) |
|---|---|
| Number of fan motors | 1 |
| Fan motor output (W) | 165 |
| Capacitor (µF) | 6.0 |
| Number of fans | 1 |
| Fan type | Centrifugal, white plastic |
|---|---|
| Coil rows | 2 |
| Fin pitch (mm) | 1.5 |
| Fin material | Hydrophilic aluminium fin |
| Tube outside Ø (mm) and type | Ø 7, inner grooved |
Panel
| Net dimensions (W × D × H, mm) | 950 × 950 × 55 |
|---|---|
| Packing dimensions (W × D × H, mm) | 1000 × 1000 × 100 |
| Net weight (kg) | 5 |
| Gross weight (kg) | 7 |
Product features
Return air plenum and filter
Comes with the return plenum and an air filter as standard — nothing extra to source for the install.
Adjustable ESP
The fan’s external static pressure can be set to suit the duct run.
External static pressure
Rated with pressure in hand for ducting, grilles and filters — not a bare free-blow figure.
