Product specifications
WSTBVS-J036-MT1FUN

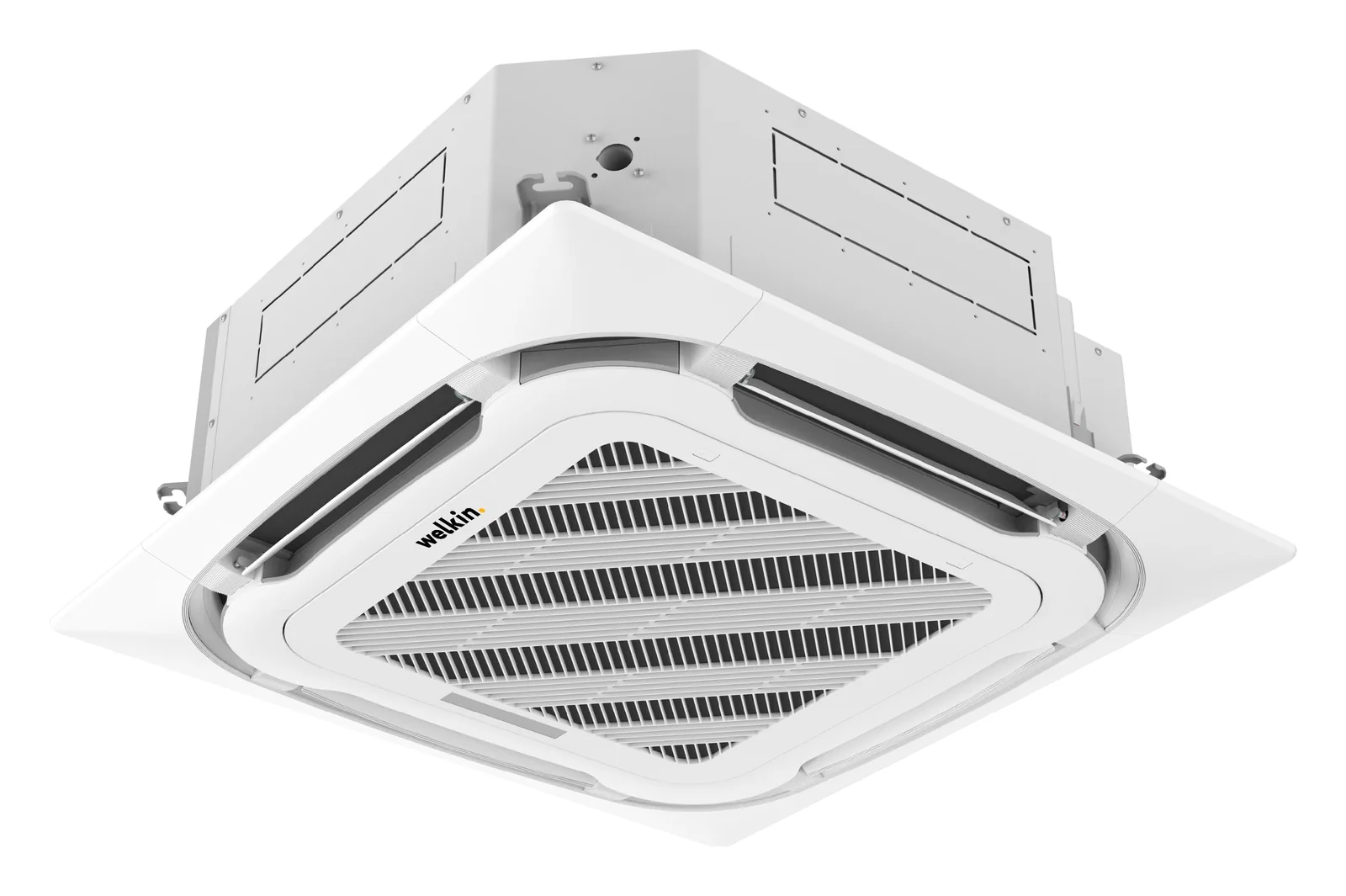

VRF system — Cassette 8-way indoor unit
| Model | WSTBVS-J036-MT1FUN |
|---|---|
| Series | Cassette 8-way indoor unit |
| Panel model | WZN09N |
| Capacity (ton) | 1 |
| Capacity (kW) | 3.6 |
| QCC Registration | Registered |
| Region | UAE |
Indoor unit
| Power supply (V / Hz / phase) | 220–240 / 50 (60) / 1 |
|---|---|
| Cooling capacity (kW) | 3.6 |
| Heating capacity (kW) | 4.3 |
| Air flow volume, H / M / L (m³/h) | 850 / 638 / 425 |
| Air flow volume, H / M / L (CFM) | 500 / 375 / 250 |
| Indoor air flow by fan speed, high → low (m³/h) | 740 / 700 / 660 / 590 |
| Noise level by fan speed, high → low (dB(A)) | 43 / 41 / 39 / 37 |
| Net dimensions (W × D × H, mm) | 570 × 570 × 260 |
|---|---|
| Packing dimensions (W × D × H, mm) | 720 × 650 × 290 |
| Net weight (kg) | 15.5 |
| Gross weight (kg) | 18.5 |
| Operating temperature (°C) | 16–32 |
| Application area (m²) | 15–30 |
Fan motor and coil
| Fan motor model | XD30D-ZL |
|---|---|
| Fan motor brand | Panasonic |
| Fan motor output (W) | 30 |
| Fan speed by setting, high → low (rpm) | 810 / 790 / 730 / 650 |
| Coil rows | 2 |
| Fin pitch (mm) | 1.4 |
|---|---|
| Fin material | Hydrophilic aluminium fin |
| Tube outside Ø (mm) and type | Ø 7, inner grooved |
| Heat exchange area (m²) | 8.64 |
Refrigerant pipe and wiring
| Refrigerant pipe, liquid side, Ø (mm) | 6.35 |
|---|---|
| Refrigerant pipe, gas side, Ø (mm) | 12.7 |
| Drainage | R3/4 in (DN20) |
| Power wiring, indoor (mm²) | 3 × 1.5 |
|---|---|
| A/B signal wiring, IDU–ODU and IDU–IDU (mm²) | 2 × 0.5 |
Panel
| Net dimensions (W × D × H, mm) | 650 × 650 × 55 |
|---|---|
| Packing dimensions (W × D × H, mm) | 710 × 710 × 80 |
| Net weight (kg) | 2.2 |
| Gross weight (kg) | 3.7 |
Product features
5-fold heat exchanger
A five-sided coil wraps the fan, so the whole 360° of airflow passes over exchanger surface.
Round-way air supply
Eight outlets send air in every direction at once — no cold spot under the unit, no dead corner.
Long-distance air supply
The fan throws conditioned air far enough to cover the room from one point.
